Home »FPV »FPV Camera »Mini 650TVL Super WDR Camera with Wide Angle Lens for FPV
Mini 650TVL Super WDR Camera with Wide Angle Lens for FPV

Mini 650TVL Super WDR Camera with Wide Angle Lens for FPV

SKU CC1567 (1)
price:
US$ 11.00
Usually will be shipped within one working day
Worldwide Free Shipping
Weight:30.00g
lens:
2.8 3.6
Mode:
IR block
System:
PAL NTSC
Quantity
  • Description
  • Payment & Shipping

Short Description:

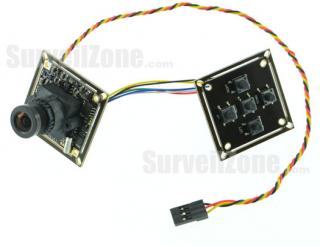

It is a color WDR board camera for FPV. This WDR product adopts high sensitivity sensor that its resolution is up to 650TVL. Equipped with 2.8mm wide angle lens, it is a small camera of 32*32mm size and light weight of 13g. All in all, it is very suitable for penetration FPV.

You can also change to wider lens, have a look at 2.1mm and 1.8mm lens


Selling Point :

    1. 1/3" High Sensitivity CMOS sensor
    2. Auto color to black function
    3. Up to 650TVL high resolution
    4. Super WDR
    5. Auto White Balance
    6. Automatic gain control (AGC)
    7. Low illumination: 0.1lux
    8. Low current 55ma
    9. 2.8mm/3.6mm/6mm Lens, by default is 2.8mm lens. If you need either of the other lenses, please leave a note when checkout
    10. By default we ship out the IR blocked filter, it means the camera is not IR sensitive. If you need the camera with IR sensitive filter, please leave us a note when checkout.


    Specification :

  • Chipset 1/3" High Sensitivity CMOS sensor
    System PAL/NTSC (ship out PAL or NTSC according to different countries, eg. NTSC to USA, PAL to UK)
    Resolution 650tvl
    Mini Illumination 0.1lux
    S/N Ratio ≥52dB
    White Balance AUTO
    WDR WDR
    Mirror AUTO
    D/N AUTO
    AGC Auto
    Language ENGLISH
    Sync Mode INTERNAL
    Video Output 1.0Vp-p, 75ohm
    DNR 2D-DNR
    Power DC12V±10%
    Current 55mA±10%
    Size 32X32 mm
    Operating Temperature -10C~50C
    Operating Humidity <90%
    Storage Humidity 20~95%


    Product Images :

    Package Includes :


  • 1X Camera
  • 1X Manual
  • 1X 3pin servo cable
  • Reviews

    Surveilzone does not endorse, recommend or sponsor any guest product reviews.

    Average Rating:
    1 customer reviews Write a Review .
    By 2015-06-17
    • Price:
    • Value:
    • Quality:
    For Some Reason MWOSD Firmware or any other at that matter will not recognize MinimOSD, at all, works with some others OSDs i have, have tested multiple cameras on multiple differnt MinimOSD based systems and non worknCamera will not display the OSD at All, i do not understandnother then that the camera works great
    Price:
    Value:
    Quality:
