Airbot OMNIBUS Fireworks V2 Flight Controller With Onboard Damping Box STM32 F405 MCU and ICM20608

SKU: MR1423

Availability:In stock

Airbot OMNIBUS Fireworks V2 Flight Controller With Onboard Damping Box STM32 F405 MCU and ICM20608

US$ 39.99
Mode:
FC FC ESC 35A FC
Usually dispatched in 1-2 business days
Description

Details

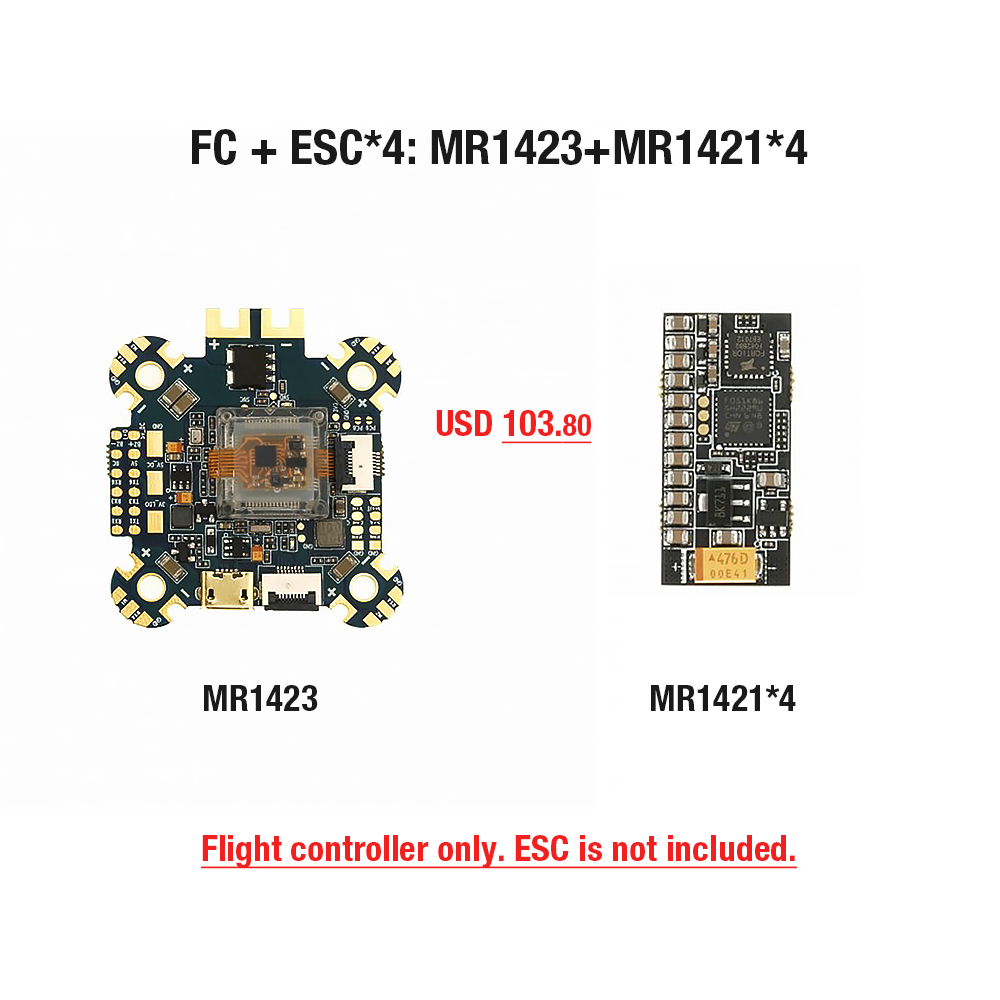

The ESC is not included. If you need them both, please choose attribute FC+35A or FC+ESC and save some dollars  or you can buy the ESC separately by clicking the below link:

Airbot 35A ESC: http://www.surveilzone.com/Airbot-Wraith32-Mini-v2-ESC-g-2182

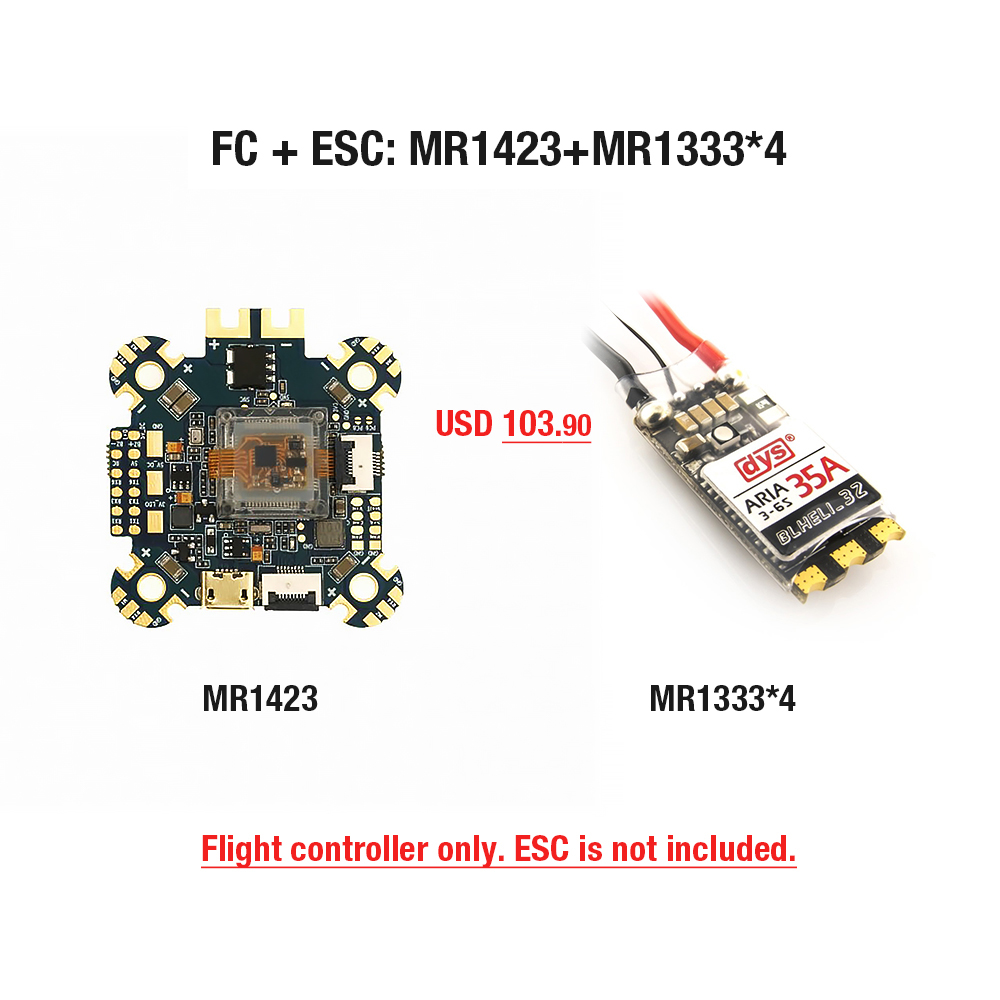

DYS 35A ESC: http://www.surveilzone.com/DYS-Aria-BLHeli_32bit-35A-35amp-Brushless-ESC-3-6S-Dshot1200-Ready-Built-in-Current-Meter-Sensor-g-2075



Description:

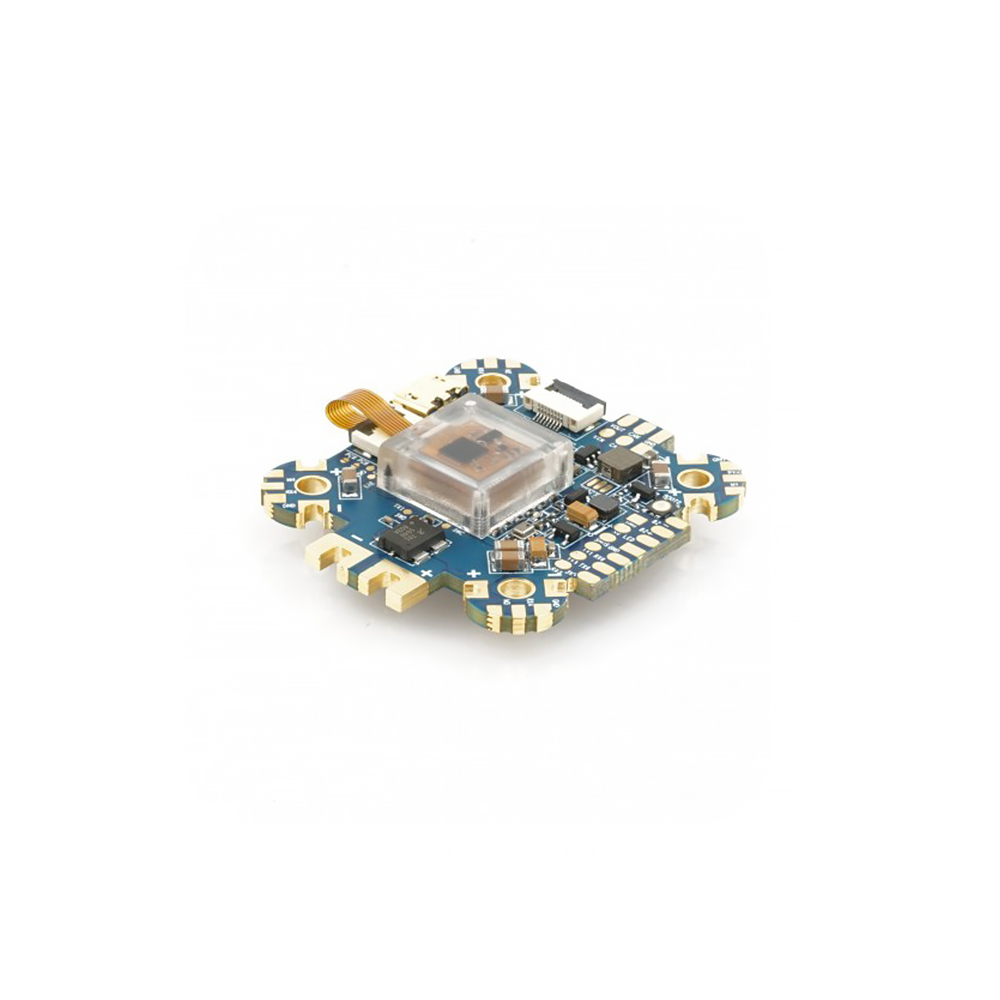

The Omnibus Fireworks flight controller uses the ICM20608 over SPI for the best possible flight performance. With onboard damping box, the ICM20608 runs perfect under 32k Gyro loop. If you haven't already seen it, you should check out Josh's awesome video on different IMUs. Also onboard are a barometer and AB7456 OSD chip for the BetaFlight integrated OSD.
Omnibus Fireworks supports 3-6s LIPO direct input, build in Digital Current Sensor and Power Filter too.

The on Board PDB is tweaked by using 12-Layer PCB design. There is only 0.2-0.5 mohm internal resistance from input to each output pads


Features:
STM32 F405 MCU, Runs Betaflight firmware(supported from v3.2)
ICM20608 Over SPI Bus in damping box. (optional MPU6000)
30.5x30.5mm Mounting holes
Supports Lipo direct plug in (3-6S)
Supports 5V 1A BEC output(Buck)
STM32 controls OSD chip over SPI in DMA mode(Betaflight OSD)
Build in Digital Current sensor
Build in Professional level PDB
Build in LC filter for Camera power(max 800ma)
More caps to reduce power noise.

2 more hardware UART compare to Omnibus F4 SD target



Modifications on v2 (since 2018-04-17):

Tantalum Capacitors can be added to the board (not included)

Solder pads added for SmartAudio and Camera Control (next to Video pads)

The orientation of IMU FPC optimized

Gyro ribbon cable redesigned to fit without extending outside the board

Added an 8v BEC and LC Filter for the camera and VTX power

This board now has 5 UART ports


Package includes:

1x Flight Controller


Notice:
If you plan to use the FC with Airbot ESC, you only need one 8pin Cable (The Option 8pin 4in1 Cable SKU: PA1405)
